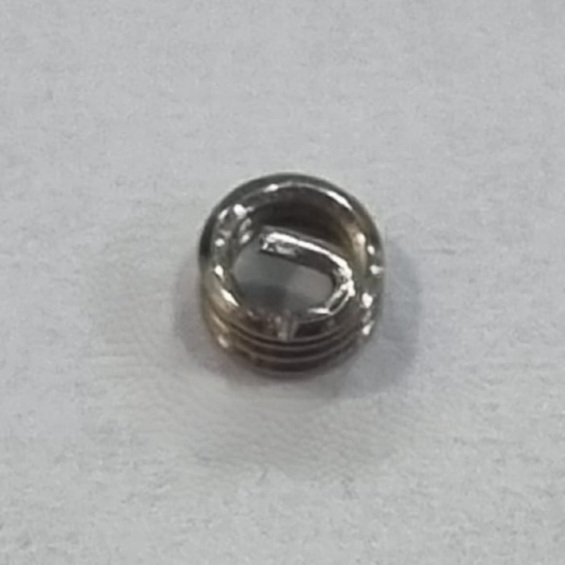

HeliCoil Free Running Insert, M2 x 0.4 x 1D (2mm Long), A2 Stainless Steel
$0.50
+ In stock.
Heli-Coil inserts are precision formed coils of
extremely hard, diamond shaped 304 stainless steel.
When installed into an STI tapped hole, they provide
permanent conventional 60° internal screw threads. Heli-Coil tanged inserts are larger in diameter

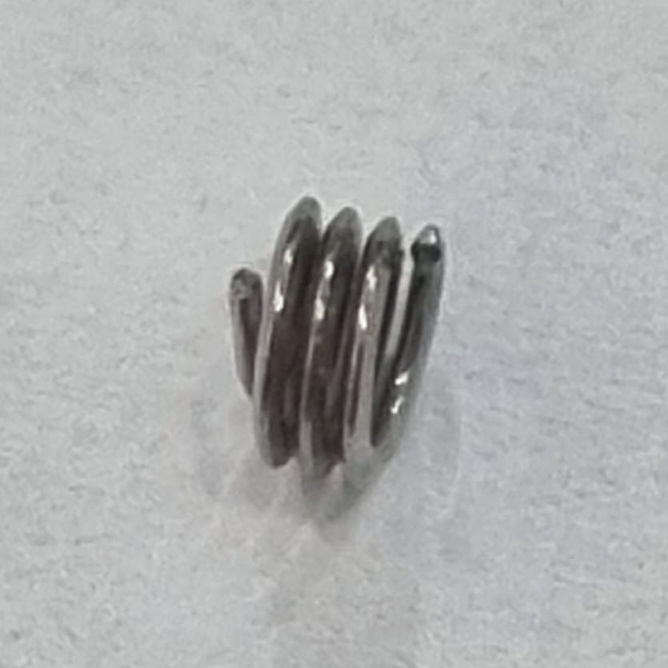

before installation than the tapped hole. The nominal length can only be achieved after installation. In its free state, the insert may appear to be more "open" or "compressed". This is due to the wire tension and is not an indication of how long the insert is.
extremely hard, diamond shaped 304 stainless steel.
When installed into an STI tapped hole, they provide
permanent conventional 60° internal screw threads. Heli-Coil tanged inserts are larger in diameter
before installation than the tapped hole. The nominal length can only be achieved after installation. In its free state, the insert may appear to be more "open" or "compressed". This is due to the wire tension and is not an indication of how long the insert is.
Quantity:
M2
1D
Free Running
A2 SST
Tanged
Bollhoff Verbindungstechnik GmbH
41300020002
2mm
2.1mm
Plain
2.6mm to 2.8mm
2mm
15100000302102
Compliant
1400 N/mm²
Metric
Coarse
Up to 420 degrees Celsius
